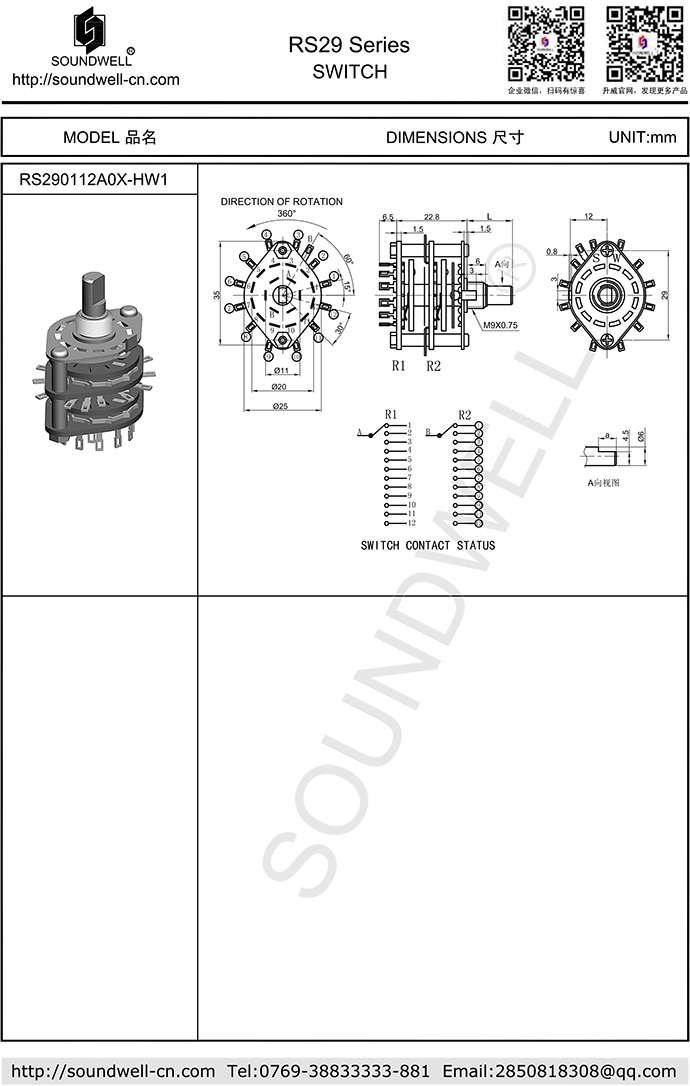

RS29 Metal shaft rotary multi-way switch
| Multiple Switch Model： | RS29 |
| Name： | Metal shaft rotary multi-way switch |
| Main Specifications: | Dimensions：25mm； Rated power：DC 30V 0.3A； Contact resistance：50mΩ Max ； Positioning Points：2～12 ； Operating temperature：-10℃～70℃； Service life：10,000 More than times； |
| Product Features： | Wire-type terminals, Dan obvious sense, stable performance, with a sleeve attached lock function, do 2-12 stalls shaped shaft and shaft length can be adjusted. |
| Applications： | Mainly applied to the amplifier, controller and other electronic equipment, the main function of switching action. |
RS29ProductSpecifications
ONE、MECHANICAL CHARACTERISTIC
1、Rotational torque ：200~1000gf.cm
2、Step angle ：30°±3°
TWO、ELECTRICAL CHARACTERISTIC
1、Contact resistance ：50mΩ Max
2、Rating power ：DC30V 0.3A
3、Number of detent ：2～12 detents
4、Insulation resistance ：100MΩ 1 Minute at DC 500V
5、Dielectric voltage ：1 Minute at DC 500V
THREE、ENDURANCE CHARACTERISTIC
1、Rotational life ：10,000 cycles Min
Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".
