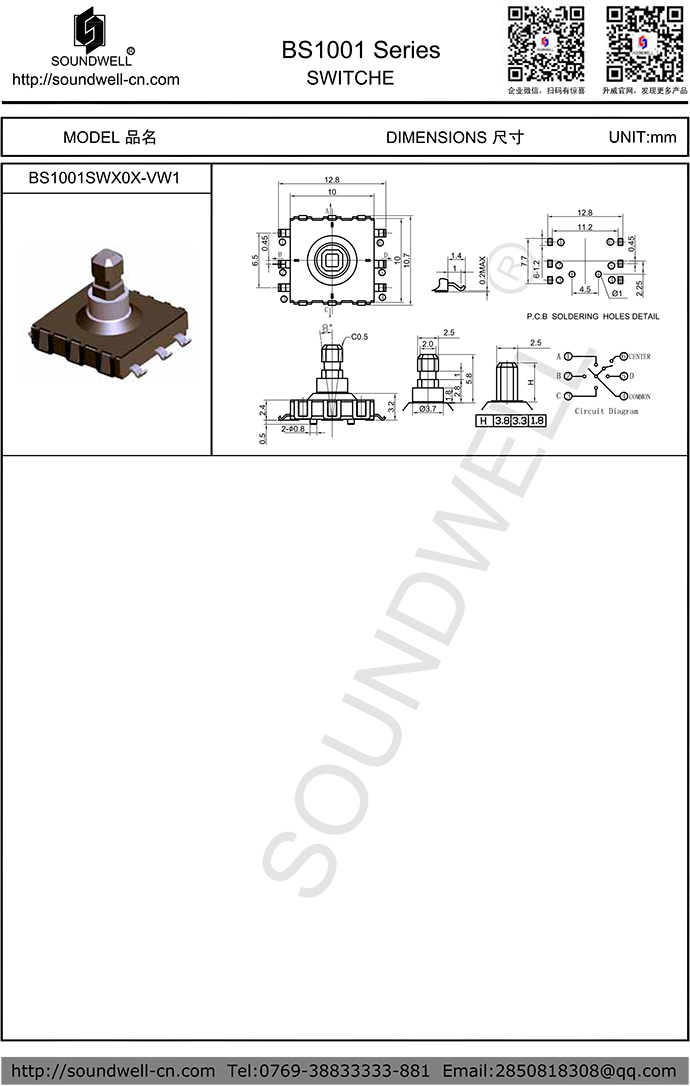

| Five-way switch Model： |
BS1001
|
| Name： | Five-way switch |
| Main Specifications: | Dimensions：10mm； Rated voltage: DC 12V； Operating temperature： －20℃ ～+70℃； Life: more than 30,000 times； |
| Product Features： | Products are small, thin body, products with four direction push switch + push switches, surface mount. |
| Applications： | The products are mainly applied to the photographic equipment, headphones, electronic toys, furniture and other intelligent electronic devices, the main function is to switch the menu function selection. |
ONE、MECHANICAL CHARACTERISTIC
1、 Operation Force ：4-directions：160±100gf （Swing moment：160±100gf）
Center push： 300±200gf（Swing moment：300±200gf）
2、Travel ：Center push：0.3±0.2mm（Press stroke：0.3±0.2mm）
4-directions：0.4±0.2mm（Swing stroke：0.4±0.2mm）
TWO、ELECTRICAL CHARACTERISTIC
1、Rating Power : 0.1A, DC 12V
2、Insulation Resistance ：100 MΩ 1 Min at DC 100V
3、Dielectric Voltage ：1 Minute at AC100V
4、Contact resistance ：≤200mΩ
THREE、ENDURANCE CHARACTERISTIC
1、Operation Life 30,000 cycles Min
Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".
